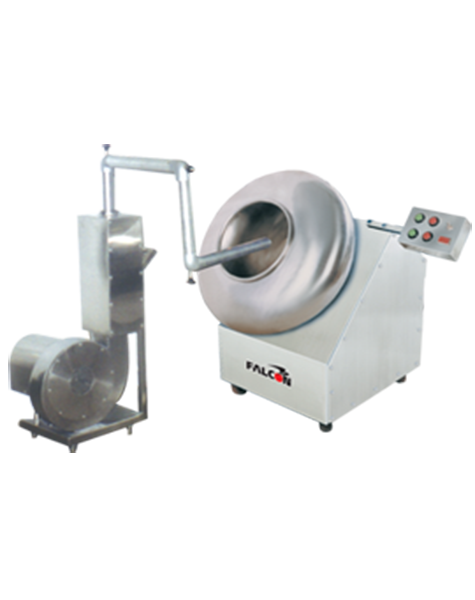

COATING EQUIPMENT

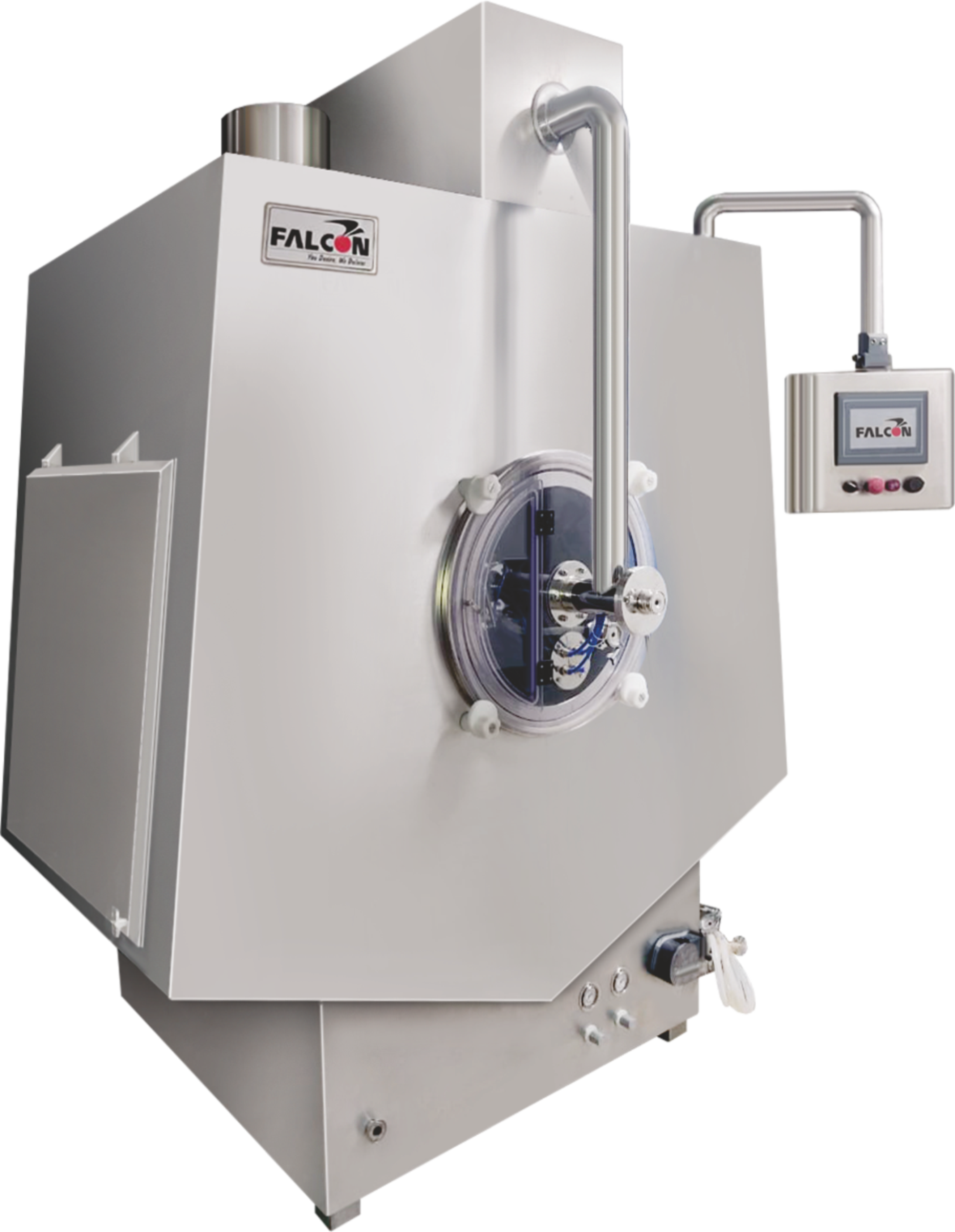

Parameter 12" 18" 24" 30" 36" 48" 60" 72" Unit / Note Brim volume 12 25 40 75 160 375 800 1200 L Working capacity 0.7–4 5–10 8–15 15–30 45–70 80–150 180–350 250–500 kg Pan outside diameter 305 460 610 765 915 1220 1525 1830 mm Mouth opening 150 150 265 285 320 460 600 620 mm Pan motor 1 1 1.5 1.5 2 3 5 7.5 HP Pan gearbox ratio 70 70 70 70 70 70 40 40 ratio Pan speed 2–20 2–20 2–20 2–20 2–20 2–15 2–15 2–15 RPM Inlet blower 0.25 0.25 1 2 3 5 10 15 HP Inlet airflow 200 200 400–750 700–1200 1000–2000 2000–3500 3500–6000 6000–8500 CFM Electric heater 6 9 12 18 32 46 60 90 kW Exhaust blower 2 2 3 5 7.5 12.5 25 35 HP Exhaust airflow 400 400 500–750 700–1400 1000–2000 2000–3500 3500–6000 6000–12000 CFM Compressed air at 6 bar 20 20 20 30 35 45 65 65 CFM

30 36 42 48 60 72 Unit 40-45 60-80 90-100 110-120 150-210 200-250 kg 1.5 1.5 2 2 5 7.5 HP 0.5 1 1 1 2 2 HP 150 150 150 150 300 300 CFM 3 3 3 3 5 5 kW

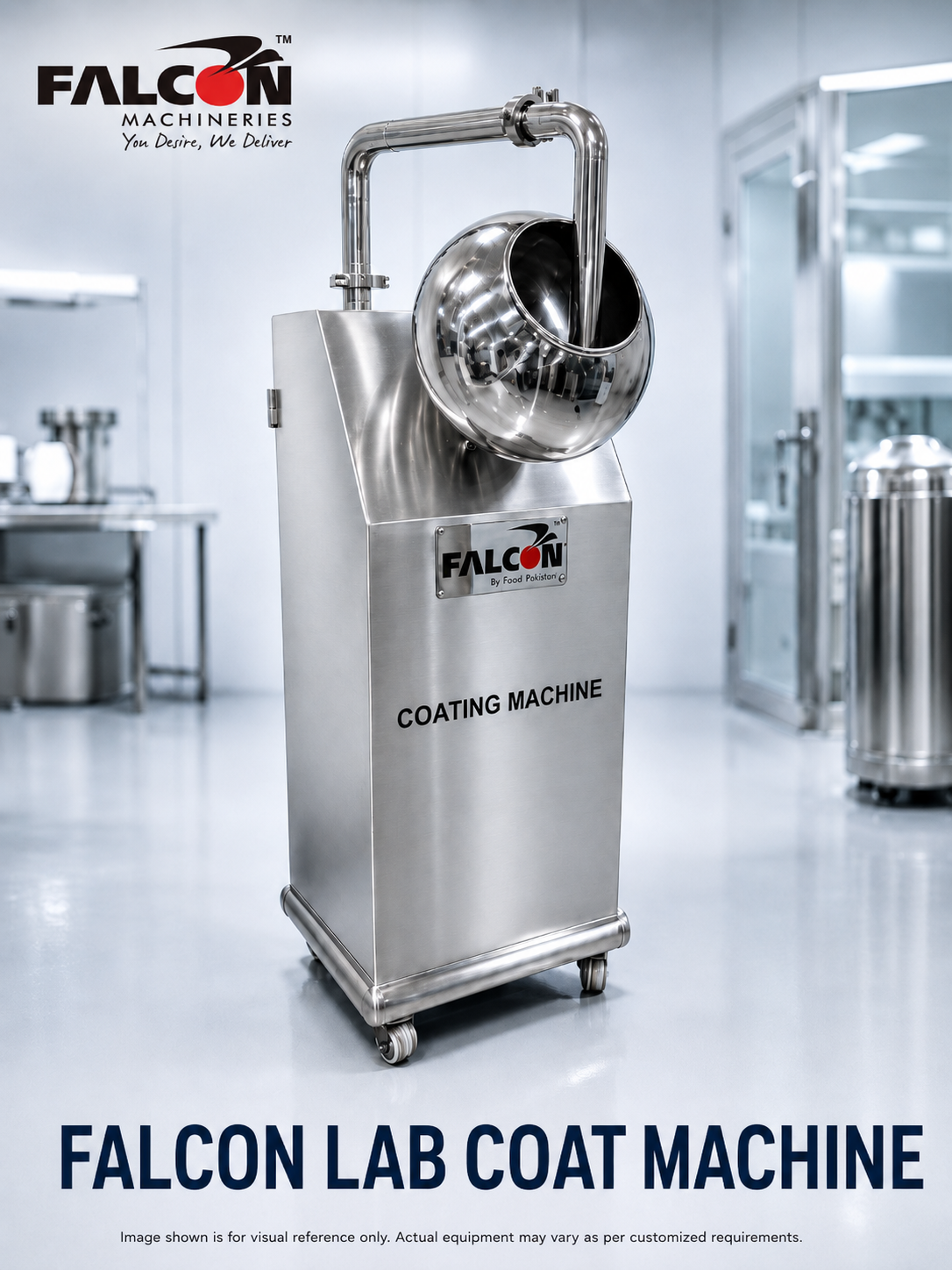

Parameter 12 18 24 Loading capacity 5 7-8 20-25 Drive motor 0.5 0.5 1 Hot-air blower motor 0.25 0.25 0.5 Blower volume 90 90 150 Heater 1 1 3
