LAB / R&D EQUIPMENT

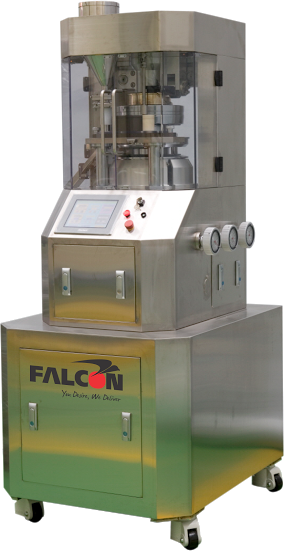

Parameter MINI-4D-4B MINI-5D-5B MINI-12 D-B-BB Unit / Note Number of stations 8 5 + 5 12 Tooling D D + B D / B / BB Output range 2,000–14,000 2,000–9,000 2,000–7,200 tablets/hour Turret speed 10–30 10–30 10–30 RPM Main compression force 6 6 6 Ton Pre-compression force 1 1 1 Ton Maximum tablet diameter 19 16 19 mm Maximum depth of fill 20 17 20 mm Main power 2 HP / 1440 RPM Same Same 415 V, 50 Hz Overall dimensions 840 × 635 × 1200 H Same Same mm Net weight 370 370 370 kg

Parameter 100/35 Lab Roll size 100 mm dia × 35 mm Output range 3–10 Roll motor 2 HP / 2.2 kW Feed-screw motor 1 HP / 0.75 kW Roll surface Corrugated / Knurled / Briquetted / Plain Roll speed 2–12 RPM Feed-screw speed 0–48 RPM Hydraulic adjustable rolls Optional Online crusher Optional Online granulator Optional Water jacket Optional

Parameter RMG 15 RMG 30 RMG 50 Unit / Note Gross volume 15 30 50 L Working volume 10–12 Confirm 40 L; catalogue RMG 30 value is erroneous Working batch weight 3–5 5–10 15–20 kg at approx. 0.5 g/cc Impeller motor 1.5 3 3 HP Impeller speed 130 150 150 RPM Chopper motor 0.5 1 1.5 HP Chopper speed 2800 2800 2800 RPM

Parameter FBD 5 FBD 30 Unit / Note Product-container volume 15 71 L Batch size Up to 5 25–35 kg at approx. 0.5 g/cc Blower motor 5 5 HP; subject to AHU and ducting Airflow 440 710 CFM Electric heater 6 18 kW Steam consumption 30 50 kg/hour Compressed-air pressure 6 6 bar Drying temperature 35–80 35–80 °C

Lab Scale R&D Compact

Parameter Benchmark Value Unit / Note Output 25-300 kg/hour Rotor speed 1000 / 2250 / 4500 RPM Screen area 637 cm2 Motor 5.5 kW / 7.5 HP 3-phase Dimensions 700 W x 1200 D x 1640 H mm Net weight 310 kg

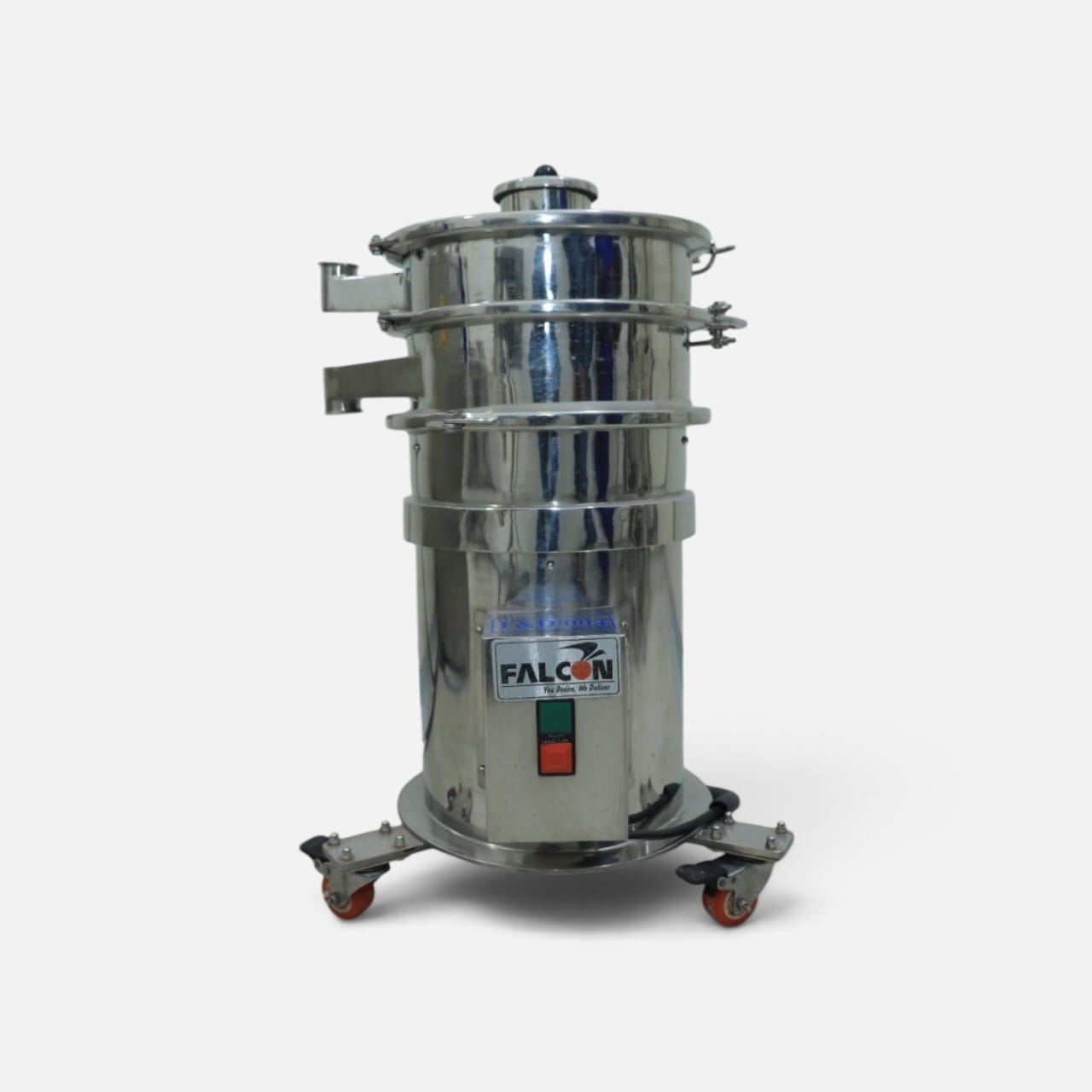

Parameter VS 20" Unit / Note Screen diameter 503 mm Capacity 20–200 kg/hour; product and screen dependent Charging height 1200 without lid mm Discharge height 720 mm Main motor 0.25 HP / 1440 RPM / 3 Ph

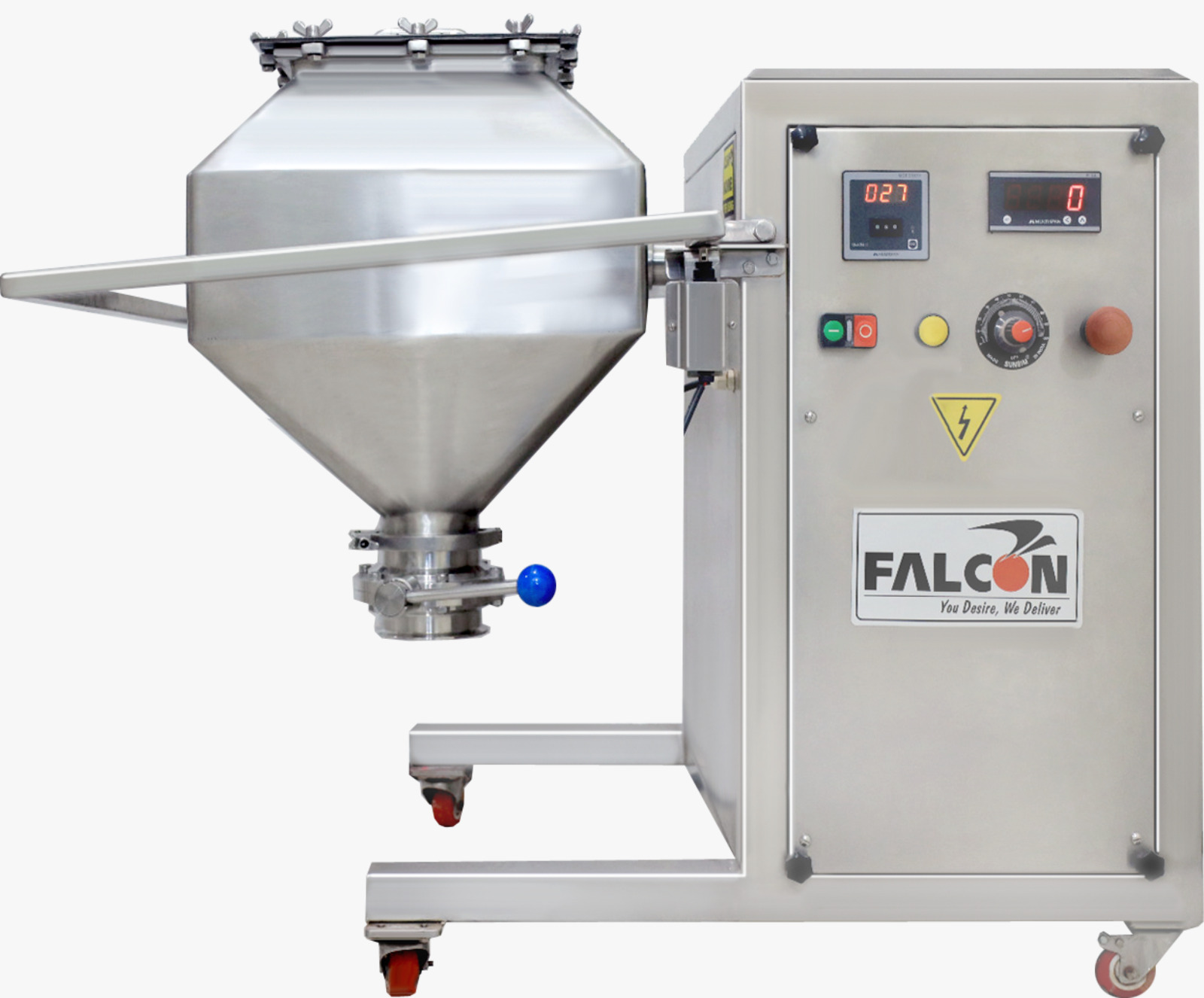

Parameter 100 L 200 L 300 L Unit Gross capacity 10 15 25 L Working capacity 8 12 20 L Machine speed 1-20 1-20 1-20 RPM Discharge port 2 2 2 inch dia.
