ROLL COMPACTION EQUIPMENT

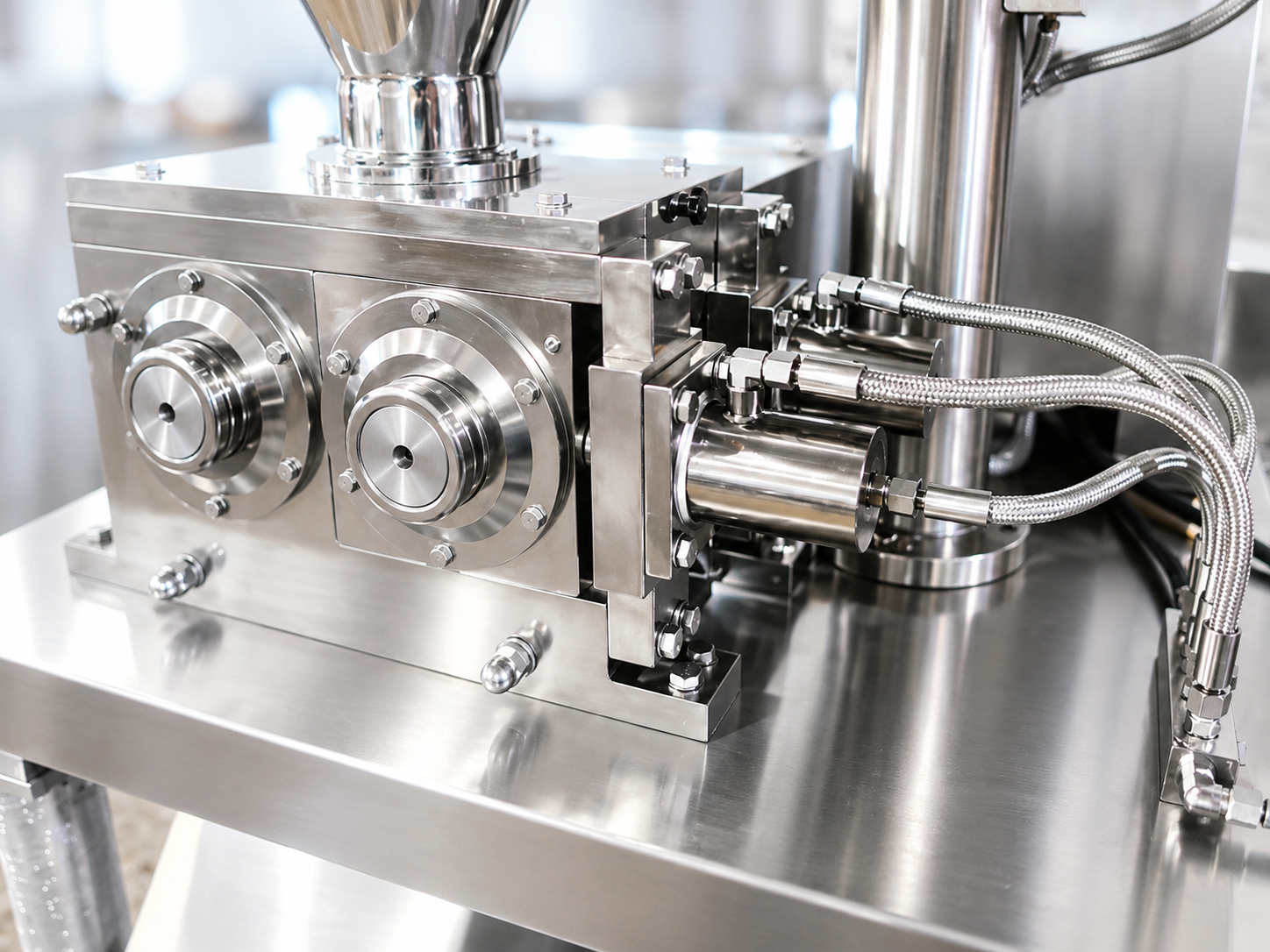

FMRC Roll Compactor
Roll compactor machine for dry granulation. Converts fine powders into solid compacts. Available in plain and water jacketted configurations with SS316L rollers.
| Parameter | FMRC-200/75 | FMRC-200/100 | FMRC-200/130 | Unit / Note | |
|---|---|---|---|---|---|
| Roll size | 200 mm dia × 75 mm | 200 mm dia × 100 mm | 200 mm dia × 130 mm | ||
| Output range | 20–70 | 40–120 | 50–150 | kg/hour | |
| Roll motor | 5 HP / 5.5 kW | 7.5 HP / 5.5 kW | 10 HP / 7.4 kW | Catalogue values; nameplate verification required | |
| Feed-screw motor | 2 HP / 1.49 kW | 2 HP / 1.49 kW | 3 HP / 2.23 kW | Catalogue values | |
| Roll surface | Same | Same | Same | ||
| Roll speed | 2–12 | 2–12 | 2–12 | RPM | |
| Feed-screw speed | 0–48 | 0–48 | 0–48 | RPM | |
| Hydraulic adjustable rolls | Optional | Optional | Optional | 0.5–5 mm gap adjustment | |
| Online crusher | Optional | Optional | Optional | ||
| Online granulator | Optional | Optional | Optional | ||
| Water jacket | Optional | Optional | Optional |
Our FMRC Roll Compactor is widely used across various industries:
Dry granulation
Densification of low-bulk-density powders
Processing moisture- or heat-sensitive formulations
Preparation of granules for tableting or capsule filling
- Counter-rotating compaction rolls
- Variable roll and feed-screw speed Choice of roll surface
- Compact contained process arrangement
- Online crusher/granulator provision
- Hydraulic adjustable-roll system as an option
- HMI TOUCH SCREEN
- STAIRCASE & PLATEFORM
