LAB / R&D EQUIPMENT

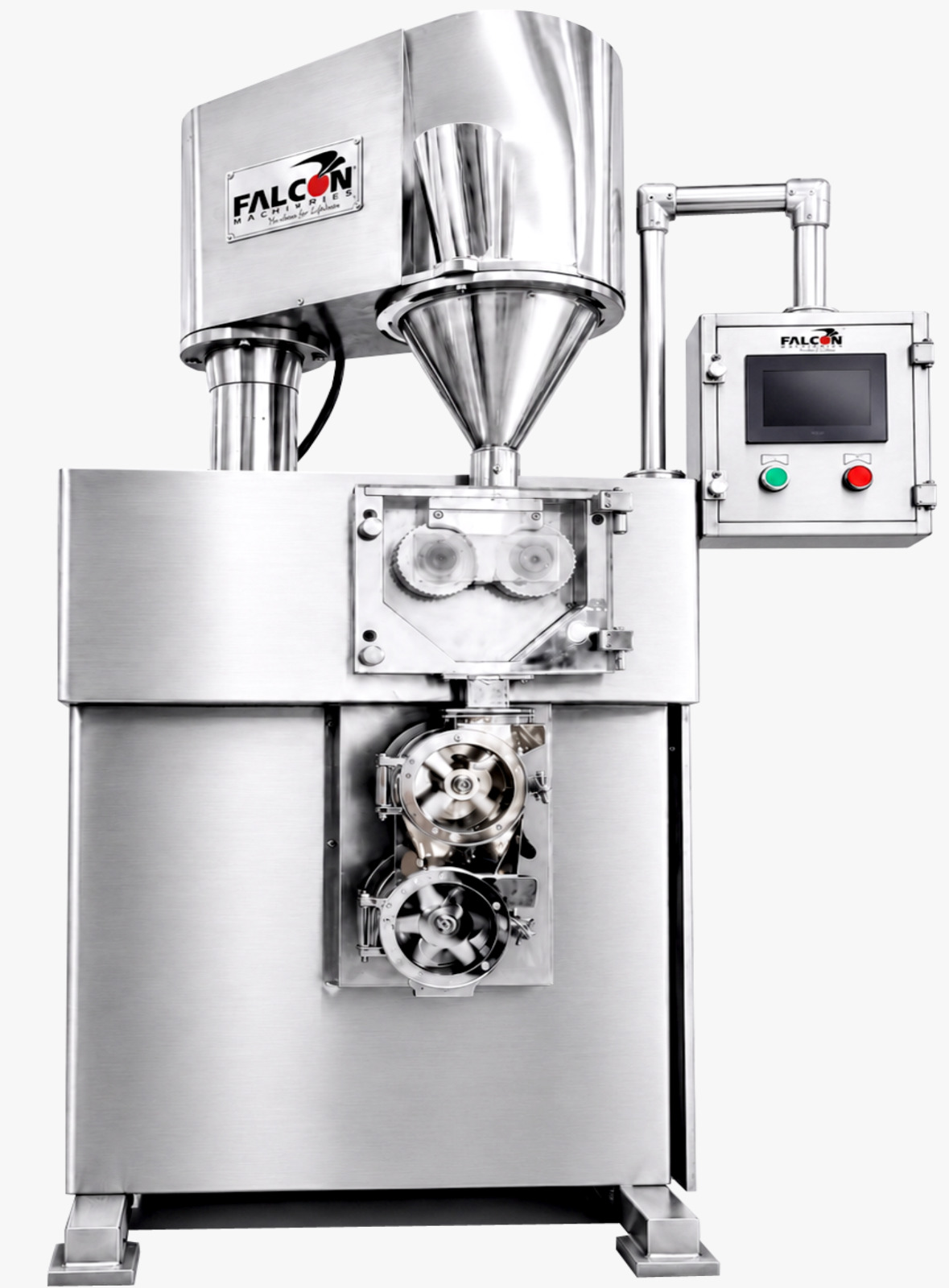

Lab Roll Compactor
Compact laboratory scale roll compactor for R&D and small batch dry granulation trials.
| Parameter | 100/35 Lab | |
|---|---|---|
| Roll size | 100 mm dia × 35 mm | |
| Output range | 3–10 | |
| Roll motor | 2 HP / 2.2 kW | |
| Feed-screw motor | 1 HP / 0.75 kW | |
| Roll surface | Corrugated / Knurled / Briquetted / Plain | |
| Roll speed | 2–12 | RPM |
| Feed-screw speed | 0–48 | RPM |
| Hydraulic adjustable rolls | Optional | |
| Online crusher | Optional | |
| Online granulator | Optional | |
| Water jacket | Optional |
Our Lab Roll Compactor is widely used across various industries:
Dry granulation
Densification of low-bulk-density powders Processing moisture- or heat-sensitive formulations Preparation of granules for tableting or capsule filling
- Counter-rotating compaction rolls
- Variable roll and feed-screw speed Choice of roll surface
- Compact contained process arrangement
- Online crusher/granulator provision
- Hydraulic adjustable-roll system as an option
