TABLET COMPRESSION EQUIPMENT

Parameter FINIX-51 D FINIX-65 B FINIX-81 BB Unit / Note Number of stations 51 65 81 Tooling D B BB Output – single layer 61,200–489,600 78,000–624,000 97,200–777,600 tablets/hour Output – two layer / two colour 30,600–122,400 39,000–156,000 48,600–194,400 tablets/hour Turret speed – single layer 10–80 10–80 10–80 RPM; catalogue shows shared value Turret speed – two layer 10–40 10–40 10–40 RPM; catalogue shows shared value Main compression force 10 / 100 10 / 100 10 / 100 Ton / kN Pre-compression force 10 / 100 10 / 100 10 / 100 Ton / kN Maximum tablet diameter 25 16 11 mm Maximum tablet thickness 8.5 8.5 8.5 mm; shared value to reconfirm Depth of fill options 3–10 / 8.5–14 / 12.5–18 Same Same mm; lower-track dependent Upper-punch penetration – pre compression 1–6 1–6 1–6 mm Upper-punch penetration – main compression 1–6 1–6 1–6 mm Main motor 11.18 kW / 15 HP / 1440 RPM Same Same Foot-mounted Hopper capacity 28 28 28 L Overall dimensions – guards closed 1820 W × 1750 L × 2060 H Same Same mm Overall dimensions – guards open 3390 W × 3390 L × 2060 H Same Same mm

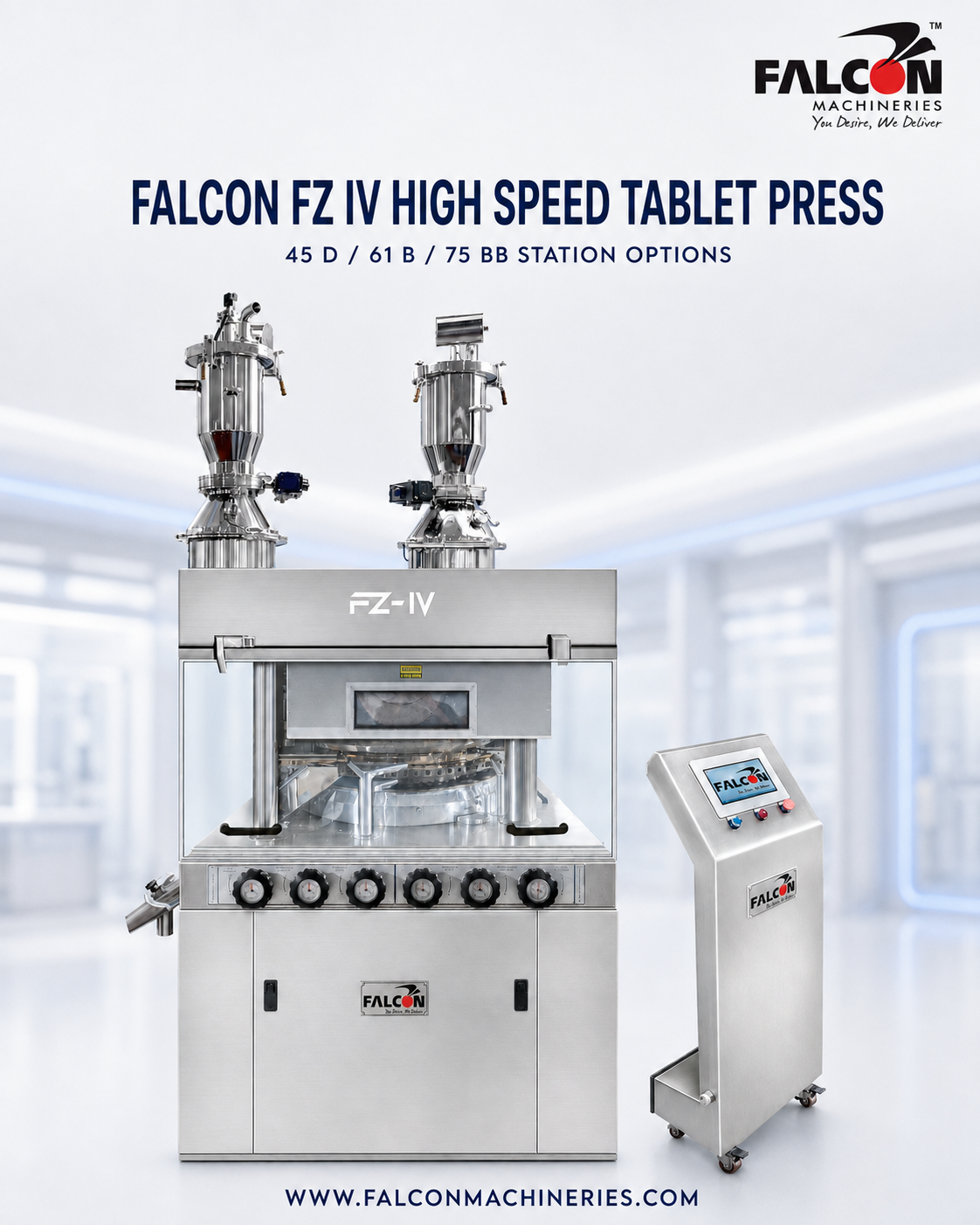

Parameter FXT IV-45 D FXT IV-61 B FXT IV-75 BB Unit / Note Number of stations 45 61 75 Tooling D B BB Output range 65,000–325,000 87,840–439,200 108,000–540,000 tablets/hour Main compression force 10 / 100 6.5 / 65 6.5 / 65 Ton / kN Pre-compression force 2 / 20 1.5 / 10 1.5 / 10 Ton / kN; 1.5 Ton / 10 kN requires correction Maximum tablet diameter 25 17 11 mm Maximum depth of fill 20 17 17 mm Upper-punch penetration 1.5–6 1.5–8 1.5–8 mm Main electric motor 9.32 kW / 12.5 HP Same Same Catalogue value Overall dimensions 167 × 178 × 209 H Same Same cm; guards closed Net weight 3750 3750 3750 kg

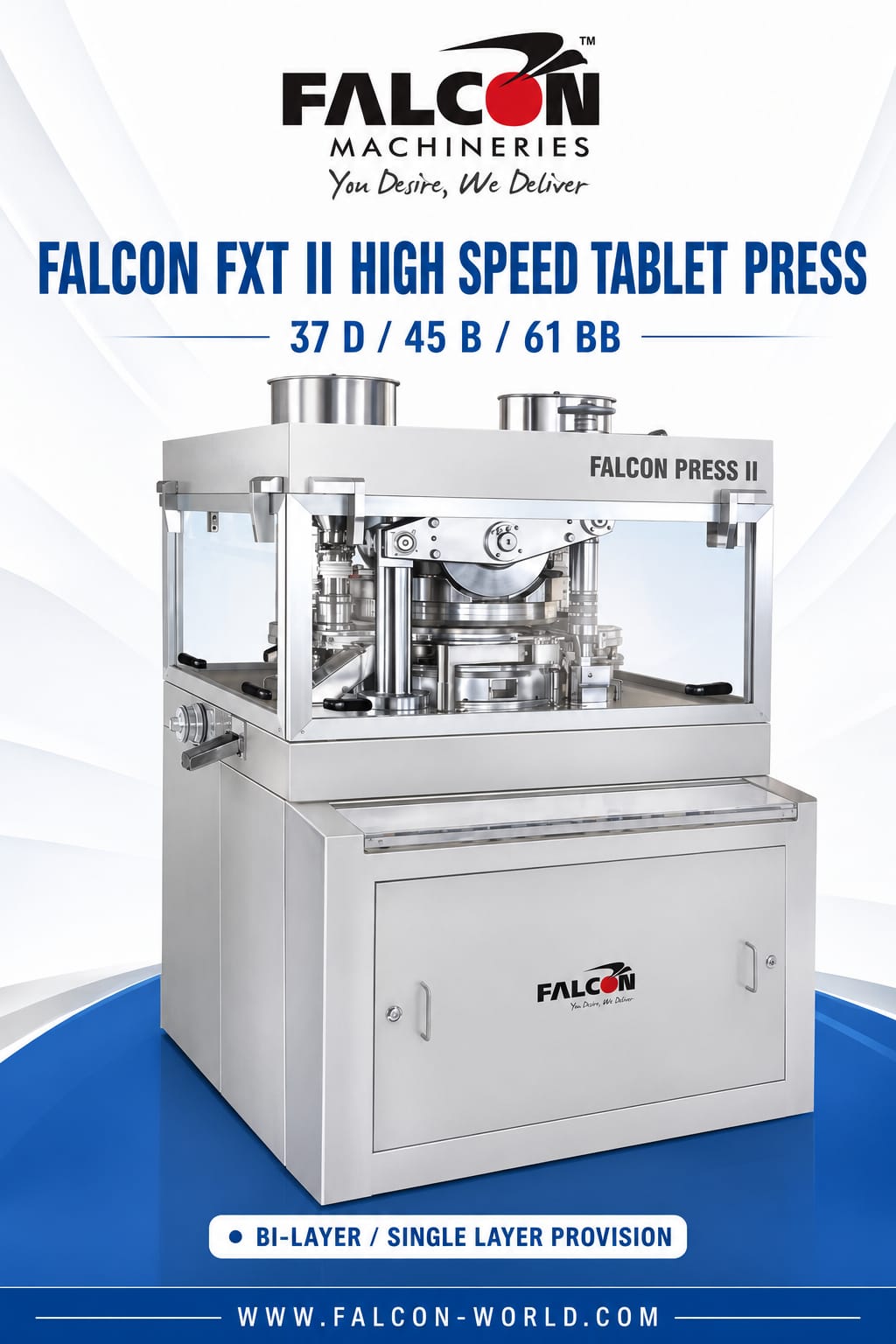

Parameter FXT II-37 D FXT II-45 B FXT II-61 BB Unit / Note Number of stations 37 45 61 Tooling D B BB Output range 53,280–266,400 64,800–324,000 87,840–439,200 tablets/hour Main compression force 10 6.5 6.5 Ton Maximum tablet diameter 25 17 11 mm Maximum depth of fill 20 17 17 mm Upper-punch penetration 1–6 1–6 1–6 mm Total power 8.5 kW / 11 HP Same Same Catalogue value Main electric motor 7.5 kW / 10 HP Same Same 1440 RPM, 415 V, 50 Hz, 3 Ph Overall dimensions 148 × 141 × 187 H Same Same cm Net weight 2500 2500 2500 kg Packing-case dimensions 170 × 185 × 226 H Same Same cm Gross weight 2835 2835 2835 kg

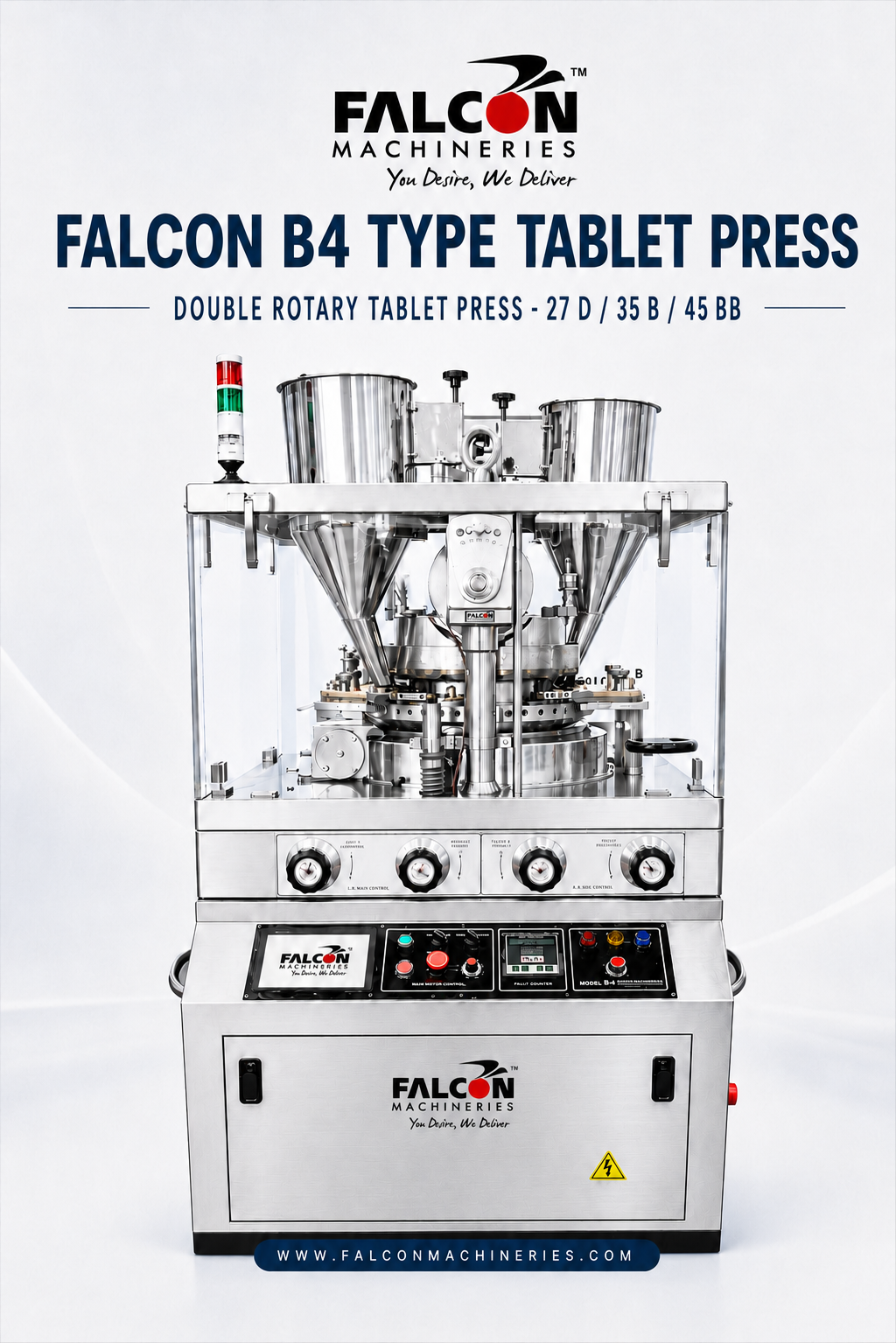

Parameter 27 D 35 B 45 BB Unit / Note Tooling D B BB Number of stations 27 35 45 Output range 50,000–129,000 70,000–168,000 90,000–216,000 tablets/hour Main compression force 10 6.5 6.5 Ton Maximum tablet diameter 25 17 11 mm; catalogue values Maximum depth of fill 20 17 17 mm Upper-punch penetration 3–6.5 3–6.5 3–6.5 mm Main motor 5.5 kW / 7.5 HP 3.70 kW / 5 HP 3.70 kW / 5 HP Catalogue value; verify 27 D against older website Overall dimensions 109 × 109 × 182 H Same Same cm Packing-case dimensions 131 × 137 × 204 H Same Same cm Net weight 1800 1800 1800 kg Gross weight 2000 2000 2000 kg

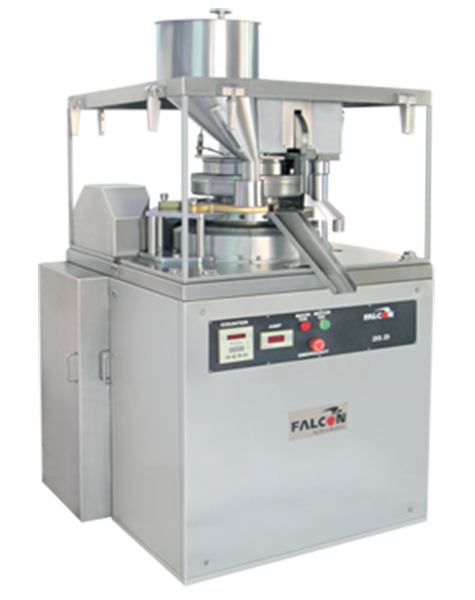

Parameter D4-20 D D4-23 DB D4-10-SLG40 D4-12-SLG30 Unit / Note Number of stations 20 23 10 12 Tooling D DB Bolus Bigger type Catalogue wording Output 16,800–50,400 19,320–57,950 5,760 at 12 RPM / 10,560 at 22 RPM 8,640 at 12 RPM / 15,840 at 22 RPM tablets/hour Main compression force 10 10 12 12 Ton Maximum tablet diameter 25 17 40 40 mm Maximum depth of fill 20 17 Confirm 30–40 mm Upper-punch penetration 3–6 3–6 3–6 3–6.5 mm Main motor 3 HP / 2.2 kW 3 HP / 2.2 kW 5 HP / 3.7 kW 5 HP / 3.7 kW Voltage/RPM mapping to reconfirm Overall dimensions 1040 L × 910 W × 2150 H Same Same Same mm Net weight 1250 1250 1250 1250 kg Gross weight 1350 1350 1350 1350 kg
